在物料输送领域，“低耗”与“抗损”是企业突破重载场景瓶颈、控制长期运营成本的关键方向。当不少品牌的输送带仍受困于撕裂频发、跑偏难控、能耗居高不下的三大“顽疾”，甚至影响生产连续性时，我们的芳纶输送带，早已凭借“超级纤维”的硬核实力破解难题——因为对我们而言，完成基础输送任务只是基准，为客户打造兼具超长寿命、超强抗损与超低能耗的高效输送方案，才是我们的核心方向。
In the field of material conveying, "low energy consumption" and "damage resistance" are key directions for enterprises to break through the bottlenecks of heavy-duty scenarios and control long-term operating costs. While conveyor belts of many brands are still plagued by three major "persistent problems" - frequent tearing, difficult deviation control, and high energy consumption - which even affect production continuity, our aramid conveyor belts have already solved these problems with the solid strength of "super fibers". For us, completing basic conveying tasks is only a baseline; our core goal is to create efficient conveying solutions with ultra-long service life, super-strong damage resistance, and ultra-low energy consumption for customers.
今天，《为客户创造价值》系列推文第四期，就带大家深入了解这款“抗撕裂、能耗低、够强韧”的芳纶输送带，看看它如何凭借高强度、轻重量、耐苛刻环境的优势成为矿山、港口、化工等重载行业破解输送难题的优选方案。
Today, the fourth issue of the "Creating Value for Customers" series of articles will take you to gain an in-depth understanding of this aramid conveyor belt that is "tear-resistant, low-energy-consuming, and highly tough". Let's see how it becomes the preferred solution for solving conveying problems in heavy-duty industries such as mining, ports, and chemical engineering by virtue of its advantages of high strength, light weight, and resistance to harsh environments.
一、什么是芳纶输送带？
What is the aramid conveyor belt?

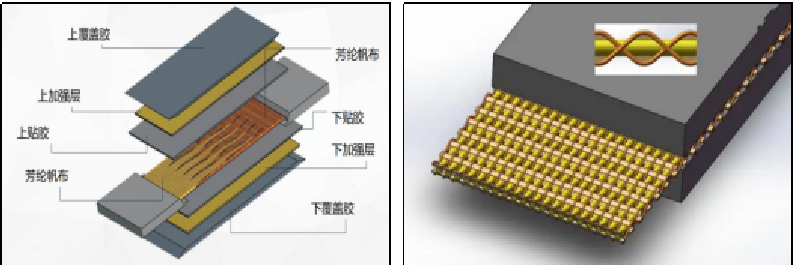

芳纶输送带是以芳纶纤维为核心骨架材料的高性能输送带。芳纶纤维被誉为“合成纤维中的钢铁”，与防弹衣核心材料“凯夫拉”同属一类，兼具超高强度、低伸长率、耐高温、抗腐蚀等特性。其带体采用单层骨架设计，经向为高强度芳纶纱线，纬向搭配锦纶帘线，在保障承载能力的同时大幅减轻重量。
Aramid conveyor belts are high-performance conveyor belts that use aramid fibers as the core skeleton material. Aramid fibers are known as the 'steel of synthetic fibers' and belong to the same category as the core material of bulletproof vests, Kevlar, offering characteristics such as ultra-high strength, low elongation, high-temperature resistance, and corrosion resistance. The belt body features a single-layer skeleton design, with high-strength aramid yarns in the warp direction and nylon cords in the weft direction, which significantly reduces weight while ensuring load-bearing capacity.
二、芳纶输送带都有哪些品种？
What types of aramid conveyor belts are there?
超耐磨芳纶输送带、耐热、耐高温芳纶输送带、抗冲击防撕裂芳纶输送带、阻燃芳纶输送带、耐油芳纶输送带、耐寒芳纶输送带等类型。
Ultra-wear-resistant aramid conveyor belts, heat-resistant and high-temperature aramid conveyor belts, impact-resistant and tear-resistant aramid conveyor belts, flame-retardant aramid conveyor belts, oil-resistant aramid conveyor belts, cold-resistant aramid conveyor belts, and other types.
三、芳纶输送带运输什么物质？
What materials are transported by aramid conveyor belts?
芳纶输送带凭借其卓越性能，能够运输多种物质。在矿山领域，它可高效运输煤炭、矿石等大宗散状物料，其高强度特性确保在重载情况下依然稳定运行，减少输送过程中的断裂风险；良好的抗冲击性和耐撕裂性，能有效应对矿石掉落等冲击，保障运输安全。在港口，芳纶输送带可用于运输集装箱、件货等，其低能耗特点有助于降低港口运营成本，同时高耐热及防火性能可适应港口复杂的环境条件。在化工行业，它能运输各类化工原料和产品，防腐蚀性能可避免输送带被化学物质侵蚀，延长使用寿命，确保化工生产过程的连续性和稳定性。
Aramid conveyor belts, with their outstanding performance, can transport a variety of materials. In the mining sector, they efficiently transport bulk materials such as coal and ore. Their high-strength characteristics ensure stable operation under heavy loads, reducing the risk of belt breakage during transportation; their excellent impact resistance and tear resistance can effectively handle impacts from falling ore, ensuring transportation safety. At ports, aramid conveyor belts can be used to transport containers, cargo, and other goods. Their low energy consumption helps reduce port operating costs, while their high heat resistance and fireproof performance can adapt to the complex environmental conditions of ports. In the chemical industry, they can transport various chemical raw materials and products. Their corrosion-resistant properties prevent the conveyor belt from being eroded by chemicals, extending service life and ensuring the continuity and stability of chemical production processes.
四、芳纶输送带执行标准都有哪些？
What are the standards for aramid conveyor belts?
产品严格遵循《HG/T 6092-2023 一般用途芳纶帆布芯输送带》标准，同时符合 GB/T9770、DIN、JIS 等国内外规范，从原材料选型到成品检测，每一项指标都经过严苛把控，确保产品稳定性与安全性。
The product strictly follows the "HG/T 6092-2023 General-Purpose Aramid Fabric Core Conveyor Belt" standard, and also complies with domestic and international specifications such as GB/T 9770, DIN, and JIS. From raw material selection to finished product inspection, every indicator is rigorously controlled to ensure product stability and safety.
五、我们公司生产的芳纶输送带有哪些优势？
What are the advantages of the aramid conveyor belts produced by our company?
- 使用寿命长
- 良好的抗冲击性和耐撕裂性
- 防腐蚀
- 高耐热及防火性能
- 低能耗
- Long Service Life
- Good Impact Resistance and Tear Resistance
- Corrosion Resistance
- High Heat Resistance and Fire Retardancy
- Low Energy Consumption

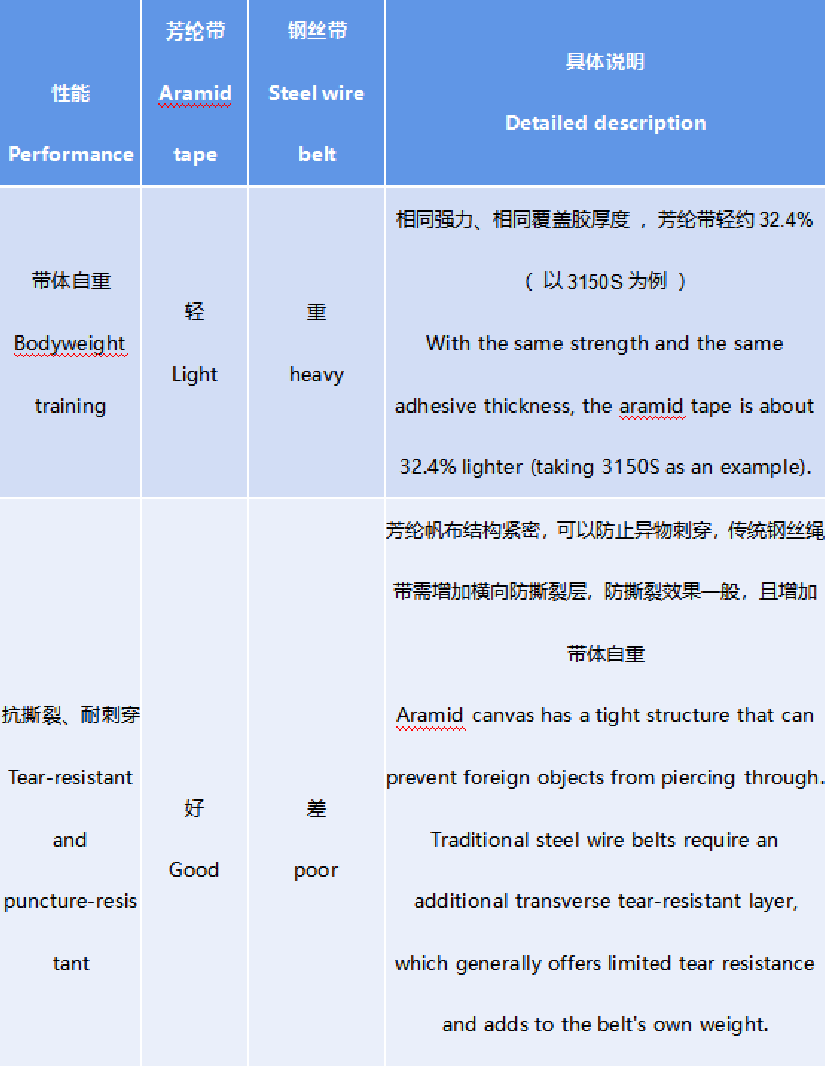

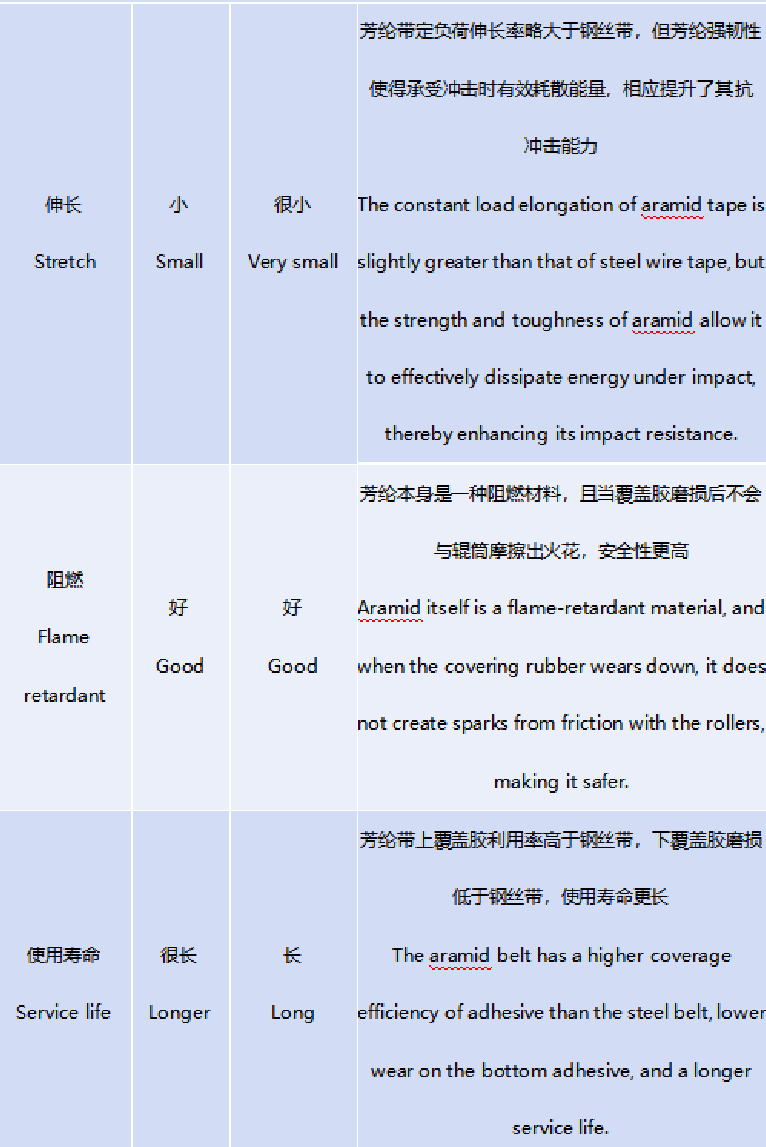

六、芳纶输送带为什么可以替代钢丝绳芯输送带？
Why can aramid conveyor belts replace steel cord conveyor belts?
芳纶输送带比钢丝绳芯输送带重量轻、厚度薄，可节省能源，降低输送机制造成本和输送物料生产中的电能，更好的体现和突出轻量化方向这一特色。
可以说芳纶输送带，集高强度、低延伸、曲挠性好、耐冲击、防穿刺撕裂、耐高温防火防腐蚀等性能于一身。综合了钢丝输送带和织物芯输送带的优点，同时克服了现有传统结构输送带的缺陷和性能局限。
Aramid conveyor belts are lighter and thinner than steel cord conveyor belts, which can save energy, reduce the manufacturing cost of the conveyor, and lower the electricity consumption in material transportation, better highlighting the feature of lightweight design.
It can be said that aramid conveyor belts combine high strength, low elongation, good flexibility, impact resistance, puncture and tear resistance, as well as high temperature, fire, and corrosion resistance. They integrate the advantages of both steel cord and fabric conveyor belts, while overcoming the defects and performance limitations of traditional conveyor belt structures.

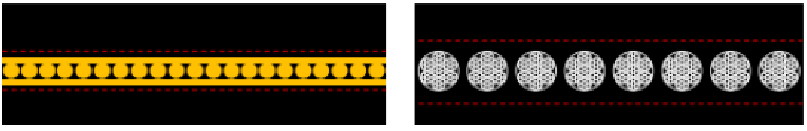

相同带体厚度，芳纶带等效的覆盖胶厚度更大，寿命更长。
With the same carcass thickness, aramid belts have a greater equivalent cover thickness and a longer lifespan.

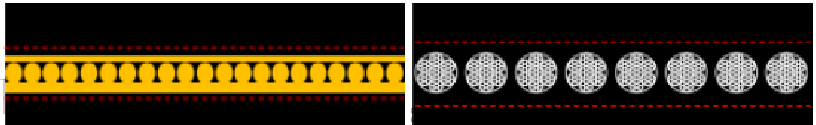

相同覆盖胶厚度，芳纶带可以做到更薄，质量更轻，节能效果更突出。
With the same coating thickness, aramid tape can be made thinner, lighter in weight, and more energy-efficient.
相同带强、相同覆盖胶厚度下 ，芳纶带可以做到更薄、更轻。
Under the same tape strength and the same adhesive coating thickness, aramid tape can be made thinner and lighter.

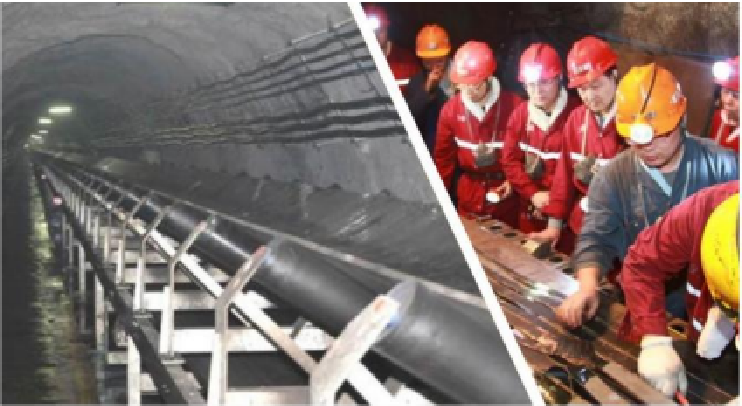

七、开封铁塔橡胶芳纶带使用场景
Application Scenarios of Kaifeng Iron Tower Rubber Aramid Belt
广泛应用于矿山开采、港口码头、钢铁、冶金、电力等行业。

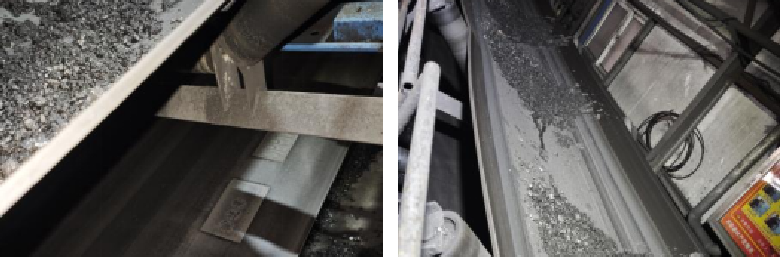

使用场景一：河南能源集团焦煤集团赵固一矿
我公司2024年为该矿供应芳纶带DPP1250-B1000（4.5+4），输送带整线运行状态良好。
Widely used in industries such as mining, port terminals, steel, metallurgy, and electric power.
Use case one: Zhaogu No. 1 Mine of Henan Energy Group Coking Coal Group
In 2024, our company supplied the mine with aramid belt DPP1250-B1000 (4.5 4), and the entire conveyor belt line is operating smoothly.

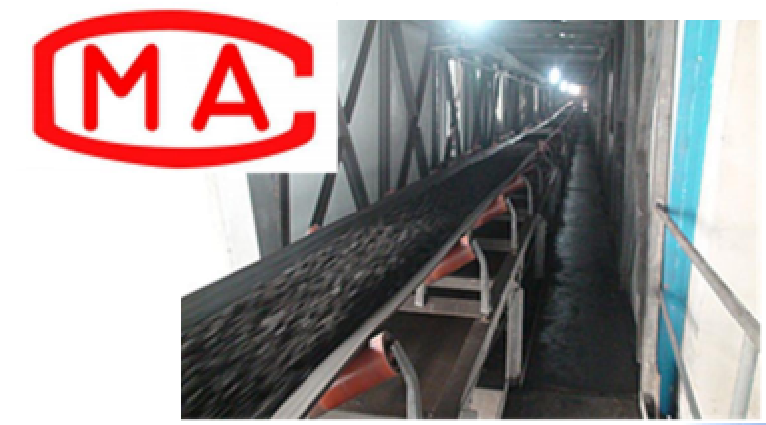

使用场景二：某煤炭公司
我公司2024年为该公司供应芳纶带DPP1600-1000（8+8），2024年年底投入运行，目前整线运行状态良好。
Use Case 2: A Coal Company
In 2024, our company supplied aramid belt DPP1600-1000 (8+8) to this company, which was put into operation at the end of 2024. Currently, the entire production line is running well.
使用场景三：某矿业公司
我公司2025年为该公司供应芳纶带DPP2000-1200（8+8），2025年3月投入运行，目前整线运行状态良好。
Use Case 3: A Mining Company
In 2025, our company supplied aramid belt DPP2000-1200 (8+8) to this company. It was put into operation in March 2025, and the entire line is currently running smoothly.
综述：
Summary：
—— 芳纶输送带！这款产品采用高强度芳纶骨架，彻底突破了传统钢绳带的重量限制，实现了高强、轻量与超长寿命的完美结合。经实际应用验证，其抗冲击、耐撕裂性能卓越，降低能耗，为矿山、港口等重载场景提供了更经济、高效的解决方案。我们始终以技术创新驱动，致力于为客户创造可持续价值。匠心制造，铁塔品质，值得信赖！
—— Aramid Conveyor Belt! This product features a high-strength aramid framework, completely overcoming the weight limitations of traditional steel cord belts, achieving a perfect combination of high strength, light weight, and ultra-long lifespan. Practical applications have proven its excellent impact resistance and tear resistance, reducing energy consumption, and providing a more economical and efficient solution for heavy-duty environments such as mines and ports. We are always driven by technological innovation and committed to creating sustainable value for our customers. Crafted with care, tower-level quality, and trustworthy!
